70mm Single Residential Door (Open In / Out)

Available in open-in and open-out styles for a variety of installations. Low threshold complies with Part M Building Regulations for disabled access. Compatible with the 70mm casement, Tilt & Turn, flush and fully reversible windows.

Innovative weldable corner joint system can be incorporated to increase rigidity of the door Available in a range of laminated foils.

Product Specification

  1. Open-in and open-out styles available for a variety of installations
  2. Can accommodate most standard locking mechanisms including high security bolt systems, flag and butt hinges
  3. Pre-routed reinforcement on locking side ensures continuous reinforcement
  4. Choice of chamfered or sculptured profiles available



Feature Specification
Profile depth 70mm
Maximum size

1000 x 2200mm (White)
1000 x 2200mm (Coloured/Foiled)

Thermal performance Exceeds 1.0 W/m2K
Max. sash weight 100kg
Glass width 4 – 44mm
Further options Low threshold options for Part M compliance

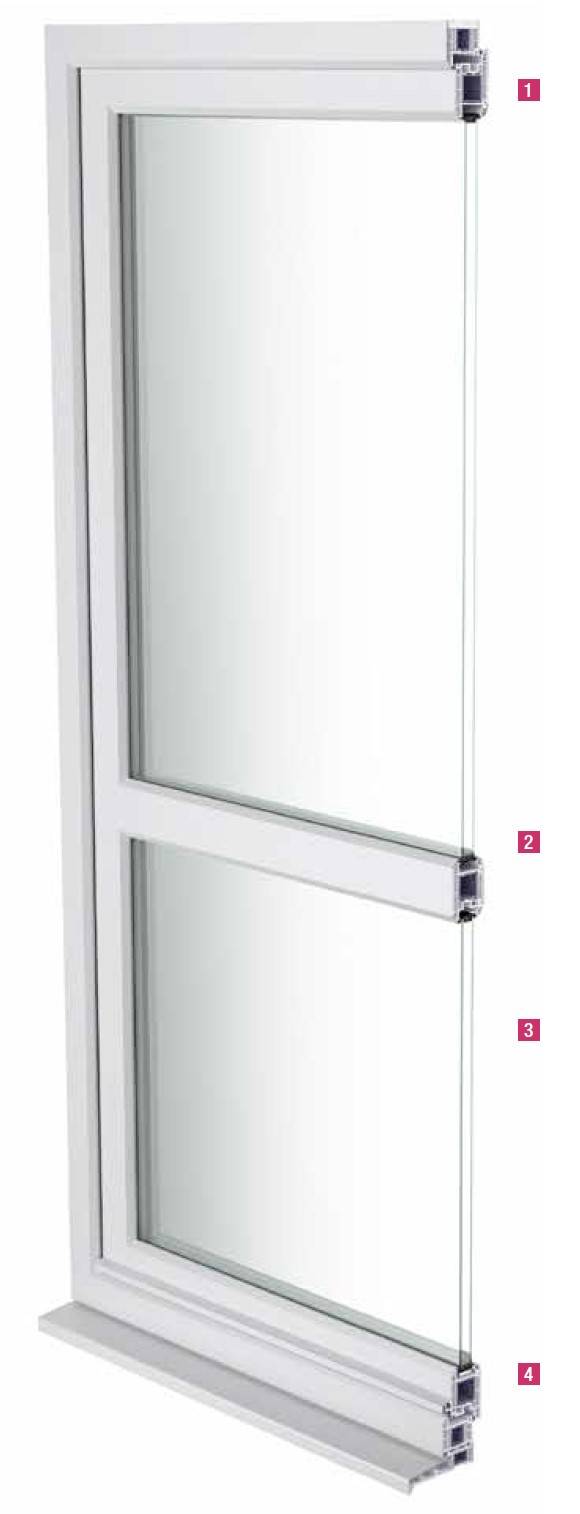

Product Spec Image
